Láminas de sellado para placas de microtest, deep-well y PCR, RATIOLAB®

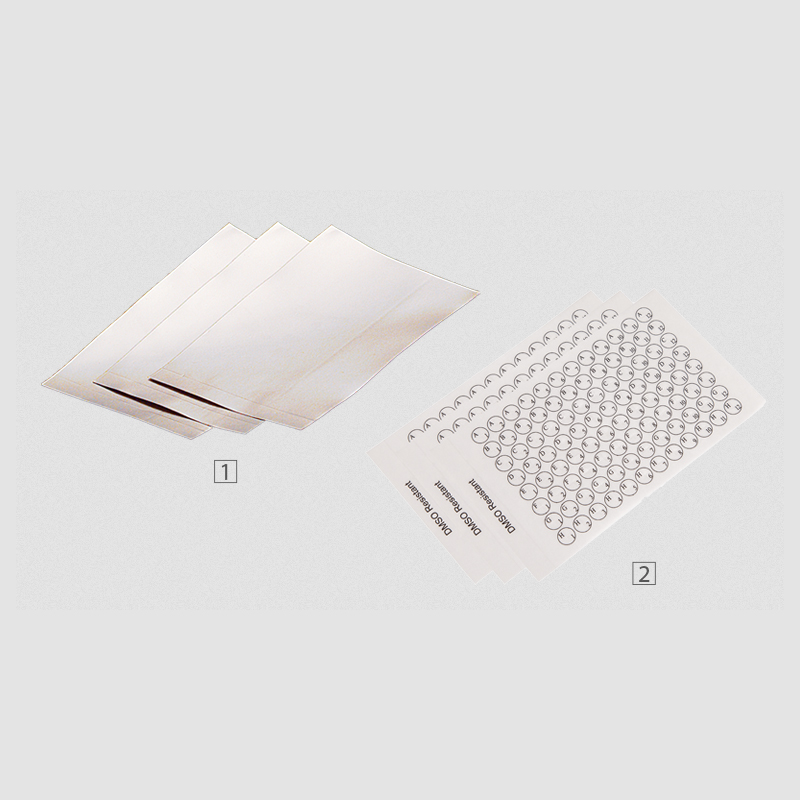

Piercing-foil with cavity circle 96-well

each cavity is marked by a circle and a numerical printing
prepierced in each cavity optimizes opening by tip
self-closing film reduces the risk of cross-contamination
also for use with micro-racks and critical PCR plates
temperature resistant from – 80 °C to + 30 °C
DMSO-resistant

Polypropylene peeling cover film

suitable for Real-Time-PCR
self-adhesive with one or two tabs
can be removed without any residues and repeatedly used
for all plate types; PS, PP, PC, PE, DMSO-resistant
temperature resistant from – 80 °C to + 120 °C
store in dry rooms at room temperature (approx. 20°C-23°C)

Aluminium universal cover film, 60 μm

material thickness: 60 μm
with tear-off tab
good pierceability
for all plate types; PS, PP, PC, PE
temperature resistant from – 80 °C to + 120 °C
store in dry rooms at room temperature (approx. 20°C-23°C)

Heat Sealing film, Aluminium, 30 μm

material thickness: 30 μm
good pierceability
the numbers A1 indicate the top side of the foil
sealing parameters: 160 – 180°C, 2-3 seconds
temperature resistant from – 80 °C to + 120 °C
DMSO-resistant
for plate types: PS, PP

Heat Sealing film, Polyester, 50 μm

material thickness: 50 μm
optically clear, peelable
the numbers A1 indicate the top side of the foil
sealing parameters: 160 – 185°C, 2-3 seconds
temperature resistant from – 80 °C to + 140 °C
