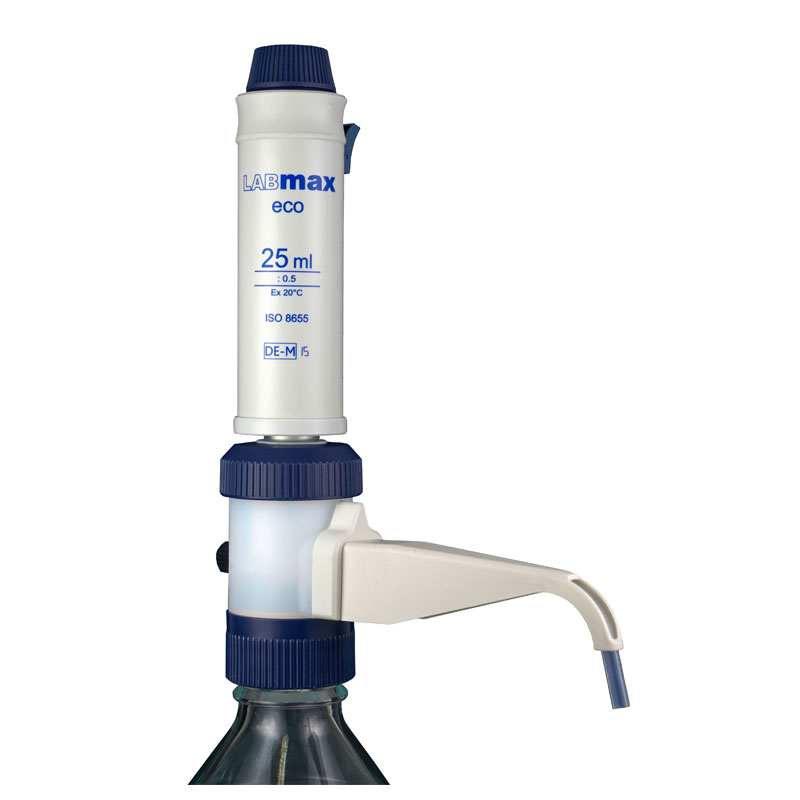

Bottle-top dispenser LABMAX eco, WITEG®

279,241.100,78

Dispensing with LABMAX eco is both economic and environmental friendly. This standard-dispenser is usable for nearly all applications of dispensing liquids in the lab and is especially ECOnomically priced. Use the “recycling mode” for an ECOlogical air-purging and draining without any loss of reagent!

»Mostrar...+»

Your advantage at a glance:

  • high quality precision instrument, made in Germany
  • all-purpose dispenser, universal chemical compatibility
  • highest accuracy and precision, our error ranges are better than the DIN EN ISO 8655-5 requirements
  • most affordable price in its class
  • direct displacement piston system, ideal for crystalline solutions
  • robust and stable, made of high quality materials e.g. platinum springs
  • 0% loss of reagent by pumping in a closed circuit
  • 100% drip-free due to our unique anti-drip system
  • 360° rotatable valve block for added safety
  • one handed operation
  • flexible by using different bottle adapters
  • easy to clean, completely autoclavable at 121°C
  • 250ml dispenser available
  • individual certificate and serial number
  • DE-M marked according to the German calibration law

LABMAX eco, suction tube, discharge tube, instruction manual, individual certificate, serial number, thread adapter (2.5/5.0/10.0 ml: A25, A28, A45, S40 | 25.0/50.0/100.0 ml: A25, A28, A32/45, S40 | 250 ml: A25, A28, A32/45, A38, S40)

Features

Quick and precise volume setting: Adjusting the volume of LABMAX eco is very simple: Just push the quick-adjust knob – slide to the desired volume– release – that’s all!

Perfect air-purging mechanism for 0% reagent loss: Turn the discharge tube at 90°. Remove (purge) trapped air without reagent loss by pumping in a closed circuit: The reagent flows back into the bottle! After pumping 2 – 3 times the dispenser is free of air and ready to use. This special feature helps not only to save residual reagent but also when accidentally setting the wrong volume!

100% drip-free system for your safety: By turning the discharge tube at 180° all liquid flows back into the bottle. LABMAX eco is completely closed and no accidental discharge can occur by inadvertently moving the piston. There is absolutely no dripping possible!

360°-turn for your added safety: No matter how much you tighten LABMAX eco, you can always redirect the discharge tube by simply turning the valve block to the desired position. This way the label of the bottle is always visible. This feature works for all our adapters. Adapters for different bottle threads can remain on the bottle.

The components having direct contact with the reagent are made of chemical resistant materials: platinum spring, ceramic valve balls, PTFE piston, borosilicate glass 3.3 cylinder, borosilicate glass 3.3 valve

»Mostrar...-»

SKU: WITEG.5.370 Categoría:

Descripción

Add selected ()
Add selected ()
Add selected items to cart
Select all
Clear all
Filters Sort results
Reset Apply
Referencia
Modelo
Volumen
Rosca
División
Env.
Disp.
Precio
Su precio
Cantidad
5 370 001

LABMAX eco 0.25 - 2.5 ml - Adjustment knob

0.25 - 2.5 mL
GL32
0.05 mL
1
Bajo pedido. Consultar plazo entrega.
279,24
Max:
Min: 1
Step: 1
5 370 002

LABMAX eco 0,5 - 5 ml - Adjustment knob

0.5 - 5.0 mL
GL32
0.1 mL
1
Bajo pedido. Consultar plazo entrega.
279,24
Max:
Min: 1
Step: 1
5 370 003

LABMAX eco 1 - 10 ml - Adjustment knob

1.0 - 10.0 mL
GL32
0.2 mL
1
Bajo pedido. Consultar plazo entrega.
279,24
Max:
Min: 1
Step: 1
5 370 004

LABMAX eco 2.5 - 25 ml - Adjustment knob

2.5 - 25.0 mL
GL45
0.5 mL
1
Bajo pedido. Consultar plazo entrega.
410,04
Max:
Min: 1
Step: 1
5 370 005

LABMAX eco 5 - 50 ml - Adjustment knob

5.0 - 50.0 mL
GL45
1 mL
1
Bajo pedido. Consultar plazo entrega.
445,03
Max:
Min: 1
Step: 1
5 370 006

LABMAX eco 10 - 100 ml - Adjustment screw

10.0 - 100.0 mL
GL45
2 mL
1
Bajo pedido. Consultar plazo entrega.
558,46
Max:
Min: 1
Step: 1
5 370 007

LABMAX eco 25 - 250 ml - Adjustment screw

25.0 - 250.0 mL
GL45
5 mL
1
Bajo pedido. Consultar plazo entrega.
1.100,78
Max:
Min: 1
Step: 1

Descargas

Documento


Título


Catálogo de producto

LABMAX eco EN.pdf

Manual de uso

5 370 00X_Labmax eco Manual DE EN_28112016.pdf

Compatibilidad Química

Chemical compatibility list Dispenser.pdf
